GitLab Pipeline Waiting for Manual Approval

In a continuous delivery workflow, it is often necessary to require manual confirmation before proceeding with a production deployment. This post walks through how to implement that, including a pitfall I ran into along the way.

How to Implement It

The solution is actually quite simple, as shown below:

waiting-for-approval:
  stage: waiting-for-approval
  when: manual
  allow_failure: false
  script:
  - echo "waiting-for-approval"

There are two key fields here: when and allow_failure.

when

This field specifies under what conditions the job should run. The accepted values are:

• on_success (default): The job runs only after all jobs in the previous stage have succeeded, or all jobs in the previous stage are configured with allow_failure: true.
• manual: The job is triggered manually.
• always: The job always runs, regardless of whether the previous stage succeeded or failed.
• on_failure: The job runs when at least one job in the previous stage has failed.
• delayed: The job runs after a specified delay.
• never: The job never runs.

allow_failure

This field determines whether the pipeline should continue when the current job fails. The value can be true or false.

Pay close attention to the default value — this is where the pitfall lies.

• When the job has when: manual, the default value is true.
• When the job has when: manual and also configures rules, the default value is false.
• In all other cases, the default value is true.

The Pitfall

Hitting the Problem

I wanted to implement a pipeline that looks like this:

My .gitlab-ci.yml was as follows:

image: alpine
stages:
- test
- build
- deploy-to-qa
- waiting-for-approval
- deploy-to-prod

test:
  stage: test
  script:
  - echo "test"

build:
  stage: build
  script:
  - echo "build"

deploy-to-qa:
  stage: deploy-to-qa
  script:
  - echo "deploy-to-qa"

waiting-for-approval:
  stage: waiting-for-approval
  when: manual
  script:
  - echo "waiting-for-approval"

deploy-to-prod:
  stage: deploy-to-prod
  script:
  - echo "deploy-to-prod"

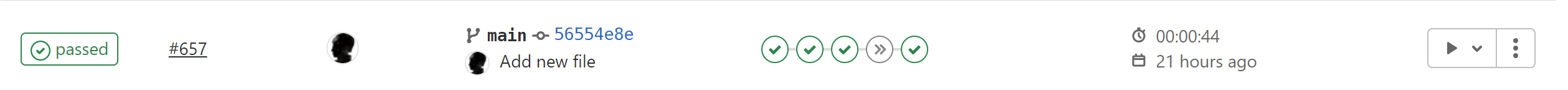

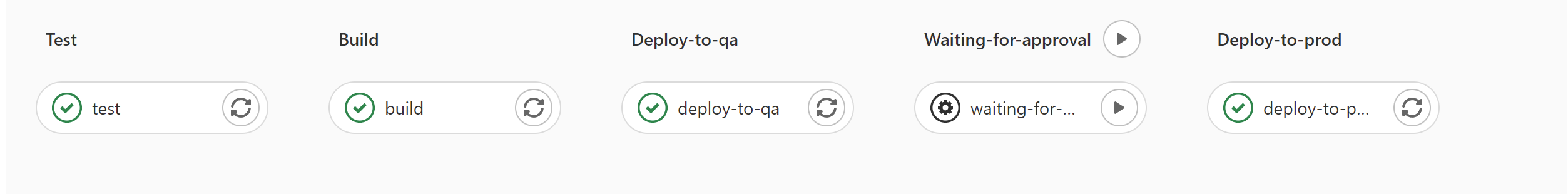

The actual execution result was:

I hadn’t clicked approval yet — so why did deploy-to-prod already run? And the pipeline status showed passed — how was it already passed?

What Went Wrong?

I went back to the documentation — Keyword reference for the .gitlab-ci.yml file | GitLab — and under Additional details found the following:

The default behavior of allow_failure changes to true with when: manual. However, if you use when: manual with [rules](https://docs.gitlab.com/ee/ci/yaml/#rules), allow_failure defaults to false.

Mystery solved!

I also found another relevant documentation page: Choose when to run jobs | GitLab, which covers how to create a job that must be triggered manually.

The Fix

Update .gitlab-ci.yml as follows:

image: alpine
stages:
- test
- build
- deploy-to-qa
- waiting-for-approval
- deploy-to-prod

test:
  stage: test
  script:
  - echo "test"

build:
  stage: build
  script:
  - echo "build"

deploy-to-qa:
  stage: deploy-to-qa
  script:
  - echo "deploy-to-qa"

waiting-for-approval:
  stage: waiting-for-approval
  when: manual
  allow_failure: false
  script:
  - echo "waiting-for-approval"

deploy-to-prod:
  stage: deploy-to-prod
  script:
  - echo "deploy-to-prod"

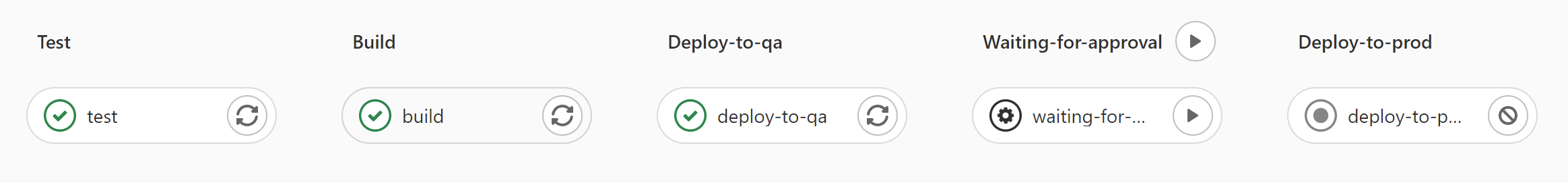

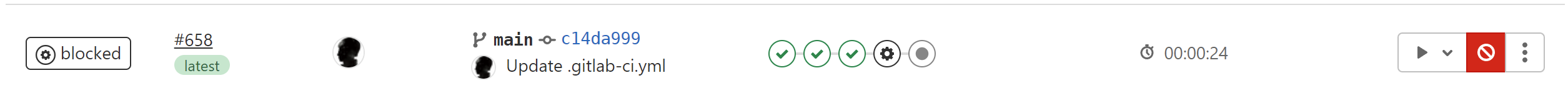

The updated execution results:
